YS Series Three-Phase Asynchronous Motors

YS series three phase asynchronous electric motor

✅ Power Range 120 W – 2.2 kW | 380 V, 50 Hz
✅ Efficiencies up to 80.5 % with Power Factor up to 0.85
✅ IP44 Full‑Enclosed Construction | B‑Class insulation
✅ Four Mounting Styles | B3, B34, B14 & B5
✅ Multi‑Pole Options (2, 4, 6, 8) | Speeds from 950 to 2800 r/min
✅ Low Inrush Current | Soft start characteristics
✅ International Compliance | JB/T1009‑2007 & IEC

Send Us Your Request Now

Product Description

Fuwei’s YS Series is built for continuous industrial duty, combining high‑grade silicon steel laminations and precision‑wound stators. Available in multiple pole counts, YS motors offer exact speed control and stable torque, even under fluctuating loads. Their cast‑iron frames and balanced rotors minimize vibration, extending bearing life and reducing noise in heavy machinery environments.

Why Partner with Fuwei?

20 Years of Expertise in electric‑motor R&D & manufacturing
150+ Models across seven series—single & three‑phase options
OEM/ODM Flexibility | Custom voltages, shafts & mounting to match your design
Strict Quality Control | Every unit passes full load, temperature rise, vibration and noise tests
Certifications & Compliance | 3C, CE, RoHS; materials traceability for global markets
Global Logistics | Vacuum‑packed, palletized shipment ensures zero transit damage

Specifications

Type	Power (W)	Current (A)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Efficiency (%)	Cos (φ)	Mst(Mm)	1st(IN)	Mma(Mn)
YS631-2	180	0.53	380	50	2800	69	0.75	2.3	6	2.3
YS632-2	250	0.67	380	50	2800	72	0.78	2.3	6	2.3
YS631-1	120	0.48	380	50	1400	60	0.63	2.4	6	2.4
YS711-4	180	0.64	380	50	1400	64	0.66	2.4	6	2.4
YS712-2	370	0.95	380	50	2800	73.5	0.8	2.3	6	2.3
YS12-2	550	1.35	380	50	2800	75.5	0.82	2.3	6	2.3
YS11-4	250	0.83	380	50	1400	67	0.68	2.4	6	2.4
YS12-4	370	1.1	380	50	1400	69.5	0.72	2.4	6	2.4
YS801-2	750	1.75	220/380	50	2800	76.5	0.85	2.2	6	2.3
YS802-2	1100	2.55	220/380	50	2800	77	0.85	2.2	6	2.3
YS801-4	550	1.55	220/380	50	1400	73.5	0.73	2.4	6	2.4
YS802-4	750	2.01	220/380	50	1400	75.5	0.75	2.3	6	2.4
YS90S-2	1500	3.44	220/380	50	2800	78	0.85	2.2	7	2.3
YS90L-2	2200	4.83	220/380	50	2800	80.5	0.85	2	7	2.3
YS90S-4	1100	2.45	220/380	50	1400	78	0.78	2.3	6.5	2.4
YS90L-4	1500	3.64	220/380	50	1400	79	0.79	2.3	6.5	2.4
YS90S-6	750	2.26	220/380	50	950	73	0.69	2	6.5	2.1
YS90L-6	1100	3.17	220/380	50	950	74	0.71	2	6	2.1

Gallery

The dimension of frame and installation

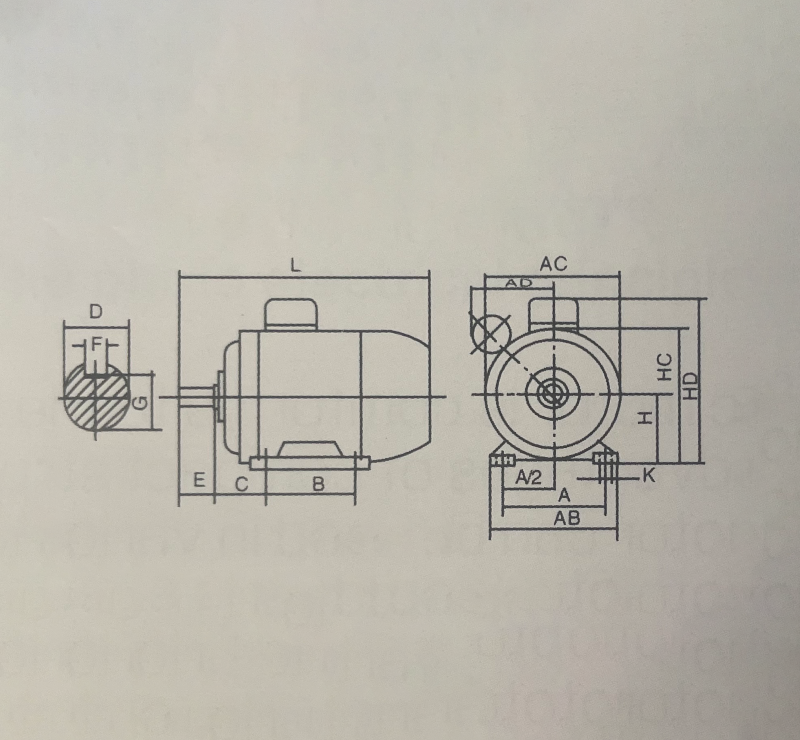

B3 Modle

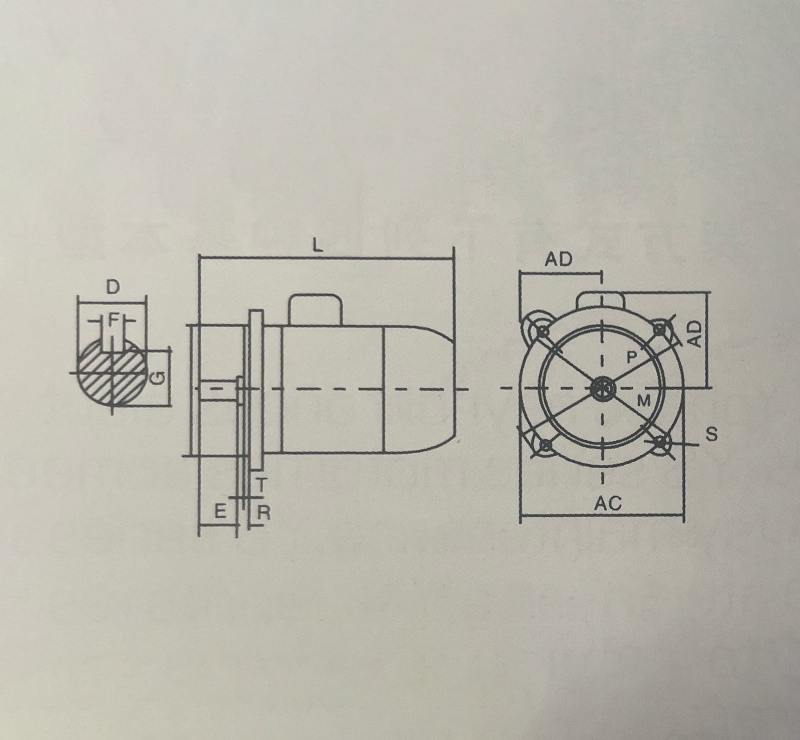

B5 Modle

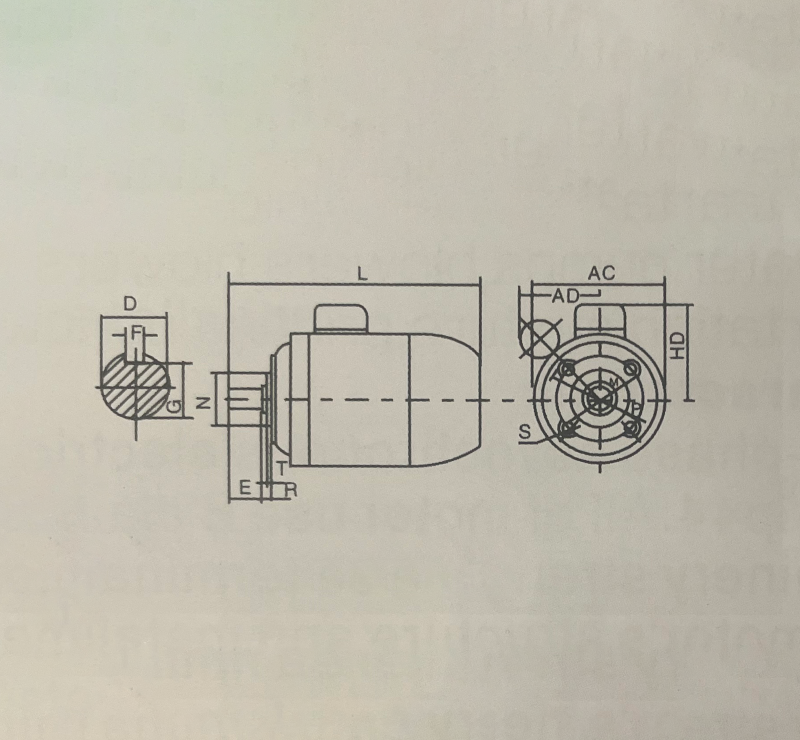

B14 Modle

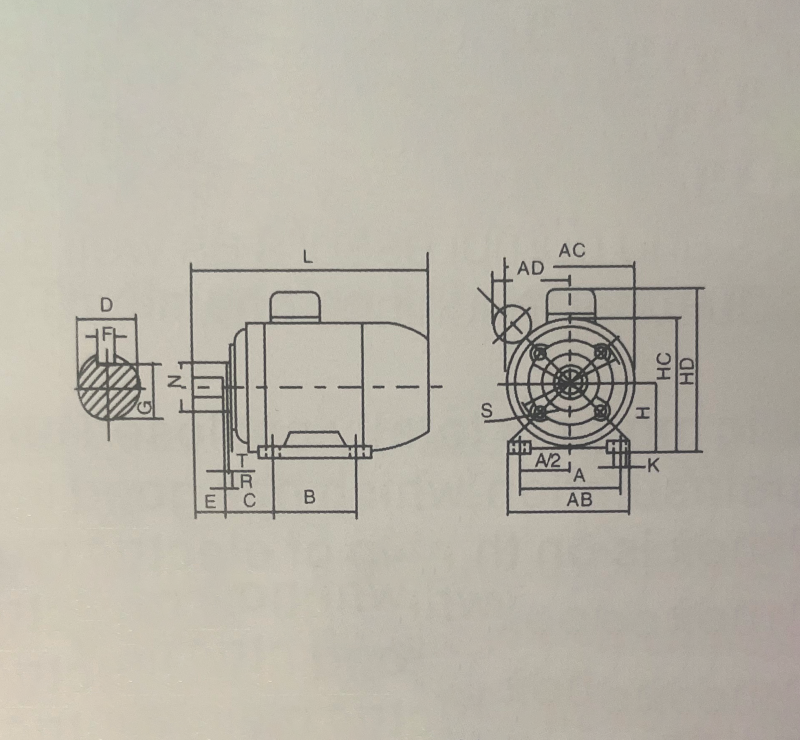

B34 Modle

Send us a message

Our Products

YC single phase electric motor

YY single phase electric motor

YL single phase electric motor

YS three three electric motor

YS three phase electric motor

Y three phase electric motor

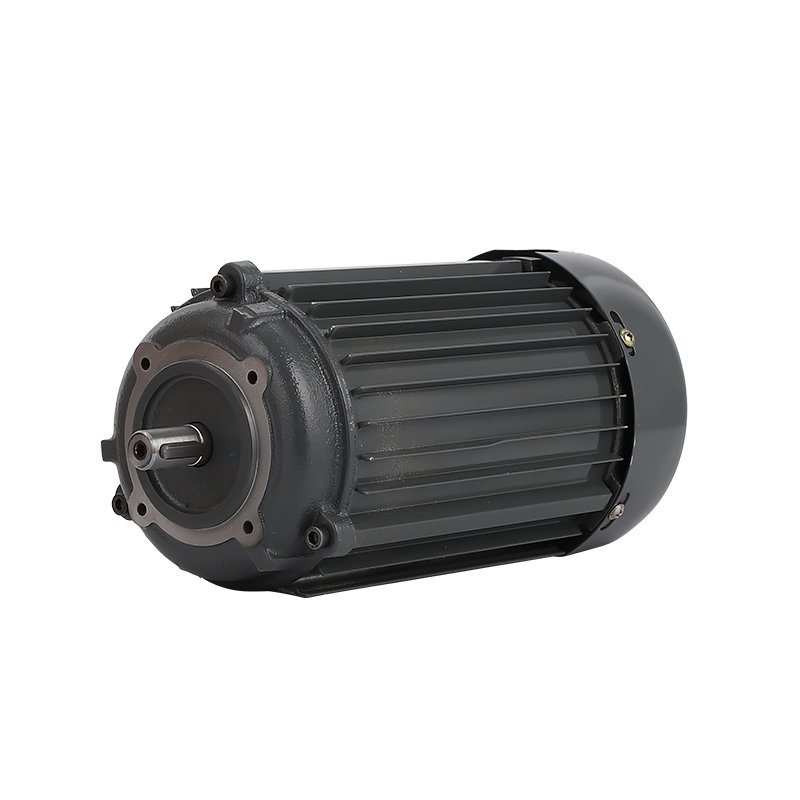

YD three phase electric motor
