Chapter 1 Introduction: Operational Losses Caused By Mismatched Aerator Motors
Fish farms and sewage treatment facilities constantly face avoidable losses from poorly matched paddlewheel aerator motors, including:
- Underpowered air-cooled motors fail to deliver enough oxygen for dense fish farming, triggering low dissolved oxygen and mass fish death;
- Low IP rating motors on floating paddlewheel aerators suffer water ingress after long-term splash exposure, burning windings;
- Class B low-temperature insulation overheats during 24h continuous operation, creating frequent unplanned downtime;
- Poor material matching leads to electrochemical corrosion in aquaculture and sewage water, shortening motor service life;
- Ordinary fixed-speed motors waste electricity on variable-load ponds, lacking energy-saving adjustment functions.
This guide combines industrial design standards with our FW-YC air-cooled, FW-YC water-cooled and FW-PM variable frequency paddlewheel aerator series, sorting out six core selection indicators, and distinguishing differentiated selection rules for aquaculture fish ponds and sewage treatment pools, helping buyers pick matching motors for FW paddlewheel aerator equipment.
Chapter 2 Six Core Authoritative Selection Standards
Step 1 Power Calculation & Load Matching
Motor rated power must reserve a minimum 10% margin against peak heavy loads, calculated based on water area, oxygen demand and paddle wheel diameter.
- Aquaculture reference: 1kW motor meets oxygen supply for about 0.27 hectares (4 mu) water surface;
- FW series model power correspondence:

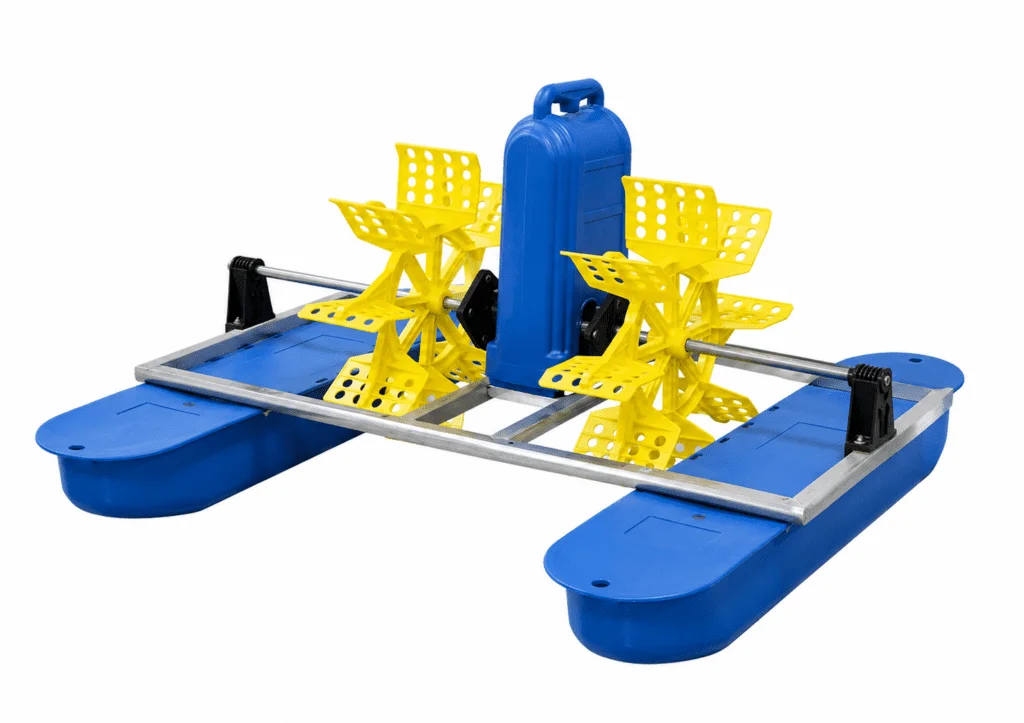

·FW-YC-0.75 Air-Cooled Paddlewheel Aerator: Matched 0.75kW motor, for small ponds under 0.4 hectares;
·FW-YC-1.5 Water-Cooled Paddlewheel Aerator: Matched 1.5kW motor, for 0.40~0.53 hectares medium fish ponds;
·FW-PM Variable Frequency Paddlewheel Aerator: Custom power from 1.5kW~7.5kW, for large intensive aquaculture & medium sewage plants; - Mandatory oxygen efficiency standard: ≥2.5kg O₂/(kW·h).
Too low power cannot meet dissolved oxygen standards; oversized power creates unnecessary electricity waste.
Step 2 IP Protection Grade Matching For Floating Paddlewheel Equipment
Paddlewheel aerators are floating surface-mounted equipment with partial water splash exposure; submersible sewage aerators require full submersion protection:
- FW-YC floating air-cooled & water-cooled aerators: Standard IP55 motor housing, resistant to continuous pond splash and mist; cannot be fully immersed long-term;

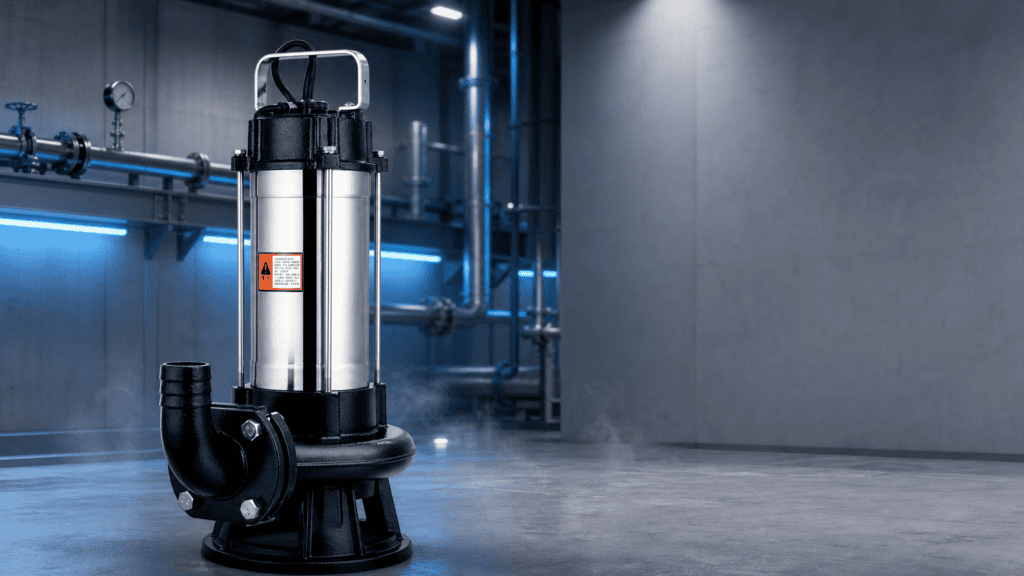

- Sewage submersible aerator supporting motor: Mandatory IP68 fully sealed housing, withstand permanent deep-water immersion;
Core difference: IP55 only blocks surface splashing water; IP68 isolates pressurized sewage and water vapor completely.
Step 3 Class F Insulation Standard (Universal For All FW Aerator Motors)
All FW-YC and FW-PM series paddlewheel aerator motors adopt Class F insulation, maximum allowable operating temperature 155℃.
F-class insulation features outstanding high-temperature resistance, stable winding performance under day-night cyclic heavy load. Low Class B/E insulation is forbidden for 24-hour continuous fish and sewage aeration equipment.
Step 4 Anti-Corrosion Material Specification For FW Series Motors
Water environments cause galvanic corrosion of dissimilar metals, unified material standards for all supporting motors:
- Main housing: Cast iron, equal durability to stainless steel with lower cost;
- Motor shaft: 17-4 PH stainless steel, anti-corrosion in fresh water and sewage;
- All exposed fasteners: Stainless steel;
- Prohibited collocation: Mixing carbon steel and stainless steel components will trigger rapid corrosion in humid water.
Step 5 Cooling Mode Selection: Air-Cooled VS Water-Cooled For FW Models
Two mainstream cooling structures matched to FW paddlewheel aerators:

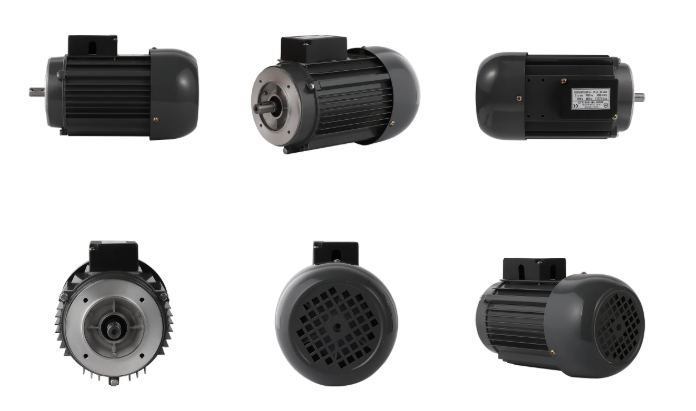

- FW-YC-0.75 Air-Cooled Motor: Independent fan forced air cooling, suitable for small ponds with intermittent operation, low upfront equipment cost;
- FW-YC-1.5 Water-Cooled Motor: Circumferential water body direct cooling design, heat dissipation efficiency far higher than air cooling, 30% longer service life for 24h non-stop medium & large farms;
- FW-PM Variable Frequency Motor: Optional water-cooled base configuration for heavy-load sewage and intensive aquaculture.
Air cooling is only for short intermittent standby operation; water cooling is recommended for full-day continuous aeration.
Step 6 Overheat & Overload Double Protection Configuration
All FW supporting motors are pre-equipped with complete overload protection:
- Built-in PTC positive temperature coefficient thermistor, auto power cut when overloaded or overheated to protect windings;
- Matching circuit breaker trip threshold set to 1.1× motor rated nameplate current, avoiding false tripping under normal peak load.
Chapter 3 Comparative Selection: Aquaculture VS Sewage Treatment
3.1 Aquaculture Fish Pond Matching Standard For FW Paddlewheel Aerators
Selection basis: Water surface area, annual fish output and breeding density
- Small pond under 0.4 hectare: FW-YC-0.75 air-cooled paddlewheel aerator with 0.75kW IP55 air-cooled motor;
- 0.40~0.53 hectare medium pond, annual fish yield over 500kg per 10 mu: FW-YC-1.5 water-cooled model with 1.5kW water-cooled motor;
- Large intensive fish farm with variable load demand: FW-PM variable frequency paddlewheel aerator, adjustable speed motor saves electricity in low-density periods;
Core index: Oxygenation efficiency ≥2.5kg O₂/(kW·h); environment is clean fresh water, IP55 floating type fully meets demand.
3.2 Sewage Treatment Matching Standard
Selection basis: Daily sewage treatment volume & BOD demand
- Small sewage tank daily flow <500m³: FW-YC series modified 0.75~1.5kW water-cooled motor, upgraded IP68 submersible housing if fully submerged;
- Medium sewage plant daily flow 1000~5000m³: FW-PM variable frequency aerator with 3~7.5kW heavy-duty water-cooled motor;
Special note for aerated grit chambers: Prioritize stirring torque, oxygenation as secondary performance; Sewage contains corrosive sediment, cast iron housing + 17-4PH shaft is mandatory.
Chapter 4 Technical Whitepaper & FAQ
4.1 Technical Whitepaper: Hidden Risks Of Mismatched FW Aerator Motors
- Choosing FW-YC-0.75 air-cooled motor for large intensive ponds: Insufficient power leads to low dissolved oxygen, mass fish loss; air cooling overheats after long-hour running, raising electricity cost 15%+;
- Using IP55 floating motor for full-submerged sewage pools: Water seepage burns windings within half a year, replacement cost far exceeds equipment value;
- Replacing F-class insulation with low B-class insulation for FW-YC-1.5 water-cooled model: Summer high water temperature triggers frequent overload trips, unstable oxygen supply;
- Skipping stainless steel shaft configuration for sewage FW-PM units: Electrochemical corrosion locks the paddle wheel, motor stalls and burns out in 2~3 months.
All hidden risks above can be eliminated by matching motors strictly according to this guide for FW-YC and FW-PM aerators.
4.2 Core FAQ
Q1: Can FW-YC-0.75 air-cooled motors work for 10 mu high-density fish ponds?
A: Not recommended. 0.75kW power cannot meet oxygen demand; choose FW-YC-1.5 water-cooled 1.5kW model instead.
Q2: What’s the difference between FW-YC water-cooled and FW-PM variable frequency motors?
A: FW-YC-1.5 is fixed-speed water-cooled for conventional fish ponds; FW-PM adds variable frequency speed regulation, energy-saving for large farms and sewage plants with fluctuating loads.
Q3: Do all FW series motors use Class F insulation?
A: Yes, FW-YC-0.75 air-cooled, FW-YC-1.5 water-cooled and FW-PM variable frequency all adopt F-class 155℃ insulation.
Q4: Can IP55 FW-YC motors be used in sewage tanks with full submersion?
A: No, sewage full-submerged projects need customized IP68 fully sealed water-cooled motors.
Chapter 5 Practical Transformation Case
5.1 Real Farm Transformation Case
A 12-mu intensive shrimp farm previously used 2 sets of generic 0.75kW air-cooled motors on ordinary paddlewheel aerators, suffering constant low dissolved oxygen and overheating trips.
After re-selecting per this guide: Replace with FW-YC-1.5 water-cooled paddlewheel aerators matched to 1.5kW water-cooled F-insulation motors.
3-month operation result: Dissolved oxygen maintained stable above 5mg/L, overload trips eliminated, monthly electricity consumption cut by 17%.
5.2 CTA Conversion Guidance
Select matched supporting motors for FW-YC air-cooled, FW-YC water-cooled and FW-PM variable frequency paddlewheel aerators to avoid aquaculture yield loss and sewage equipment downtime.
👉 Contact our technical team to confirm custom IP grade, power and anti-corrosion motor scheme for your pond or sewage plant
Standard FW-YC stock models support fast delivery, fully compliant with aquaculture and wastewater industry standards.
